After 18 years and 2,400+ plumbing installations, I've learned that homeowners who understand their plumbing systems save thousands in repairs and catch problems days before disasters strike. In fact, 65% of the emergency calls I handle could have been prevented with basic system knowledge. Your home's plumbing isn't complicated—it's two simple systems working together.

For a comprehensive overview of all plumbing components, including pipe materials, code requirements, professional services, and maintenance schedules, see our Complete Guide to Plumbing Systems & Services.

The Two Systems: Supply and Drainage

Your plumbing consists of two completely separate systems that never mix. The supply system delivers clean water under pressure (40-80 PSI), while the drainage system removes waste through gravity and airflow.

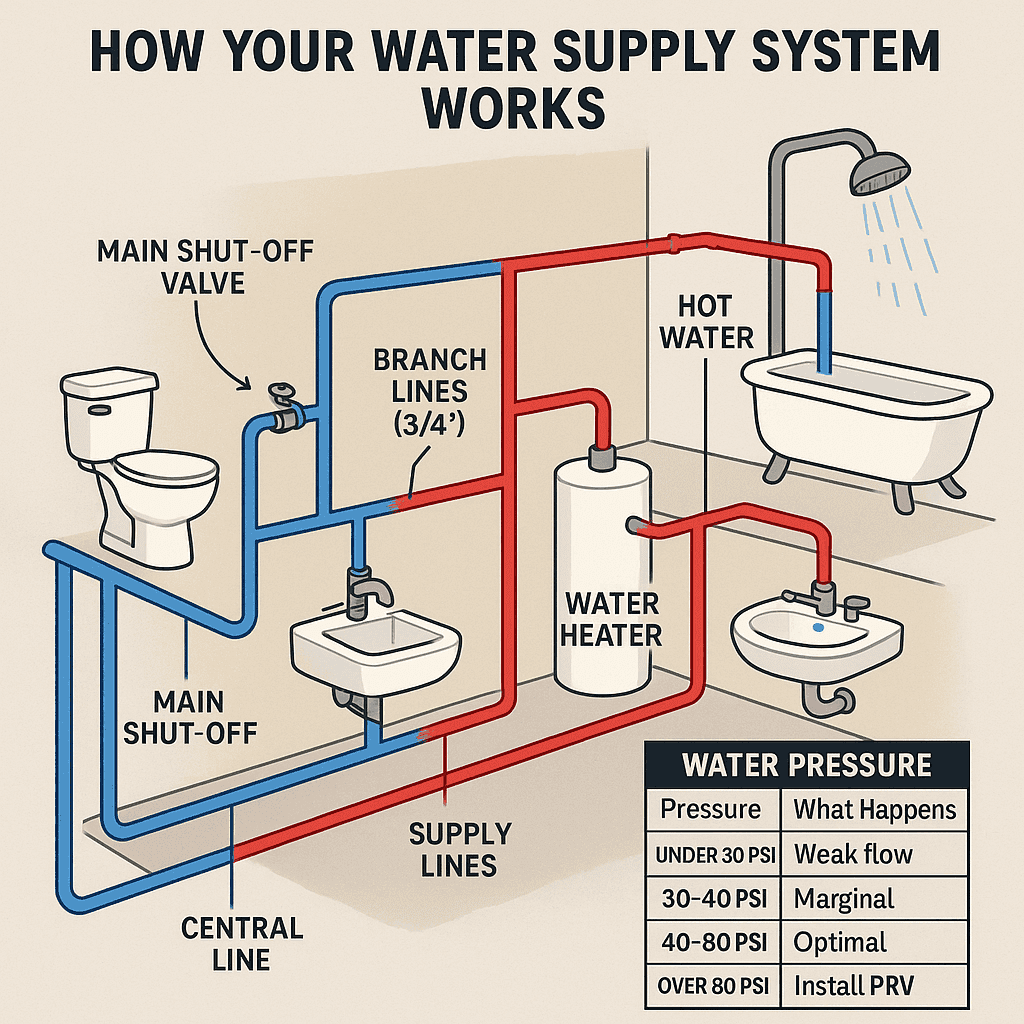

How Your Water Supply System Works?

Water enters your home through a central line, typically 3/4" to 1" in diameter, from either a municipal supply or a private well. Municipal water arrives pre-pressurised at 40-80 PSI. Well systems use pumps and pressure tanks to maintain consistent pressure.

The Journey Through Your Home

Your main shut-off valve—the most crucial component you need to locate—sits where the supply line enters your home. From there, water travels through a network of increasingly smaller pipes:

1. Central line (3/4"-1") enters the home
2. Branch lines (3/4") split to different areas
3. Supply lines (1/2") connect to individual fixtures

The material choices for these pipes—whether copper, PEX, or CPVC—affect both cost and longevity.

Cold water branches directly to fixtures and to your water heater. Hot water leaves the heater through separate pipes, creating parallel hot and cold systems throughout your home.

Water Pressure Essentials

Proper pressure is crucial for system function:

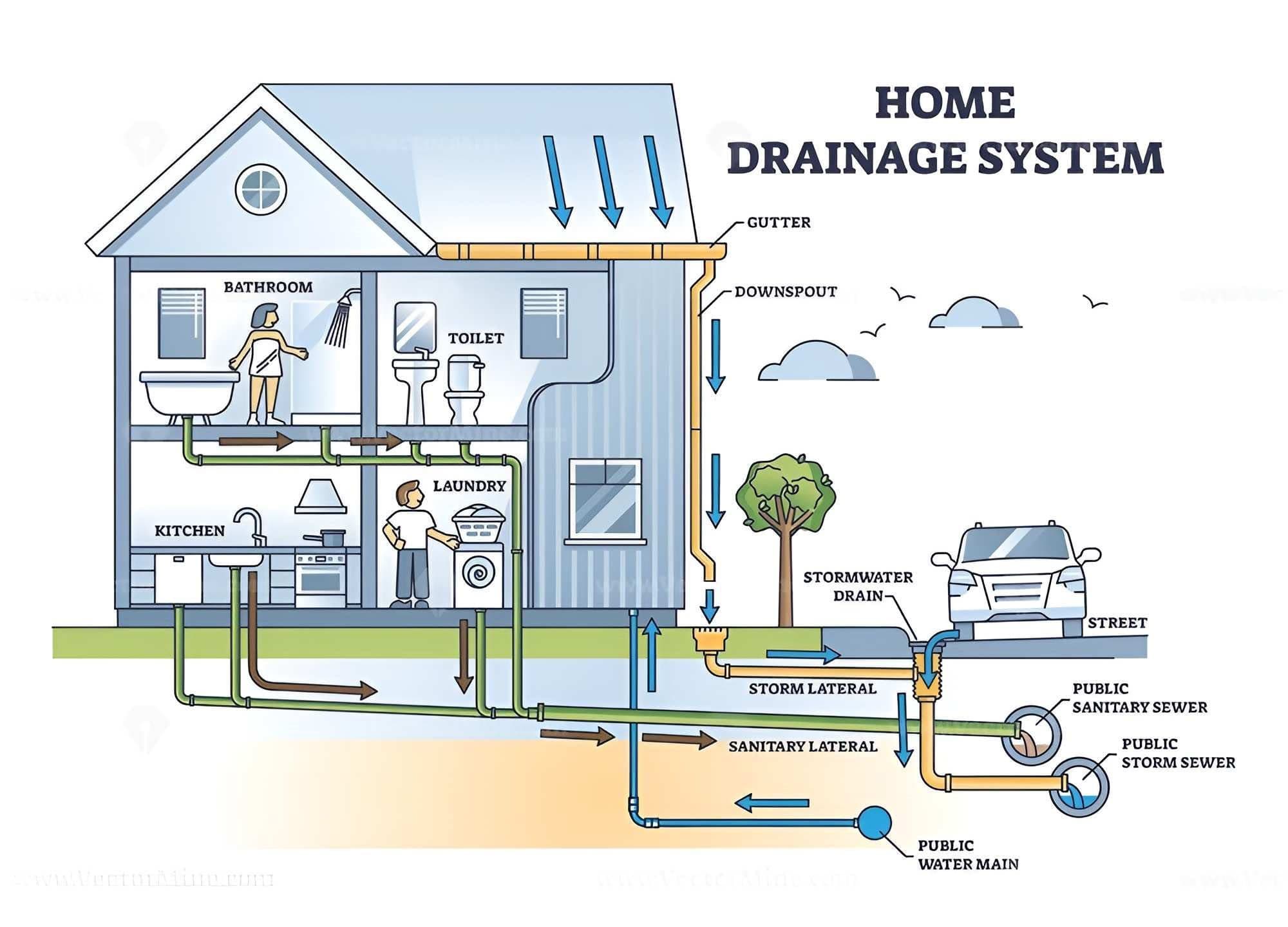

How Drainage Systems Work?

Unlike supply systems that use pressure, drainage relies entirely on the force of gravity. Every drain pipe in your home slopes exactly 1/4 inch per foot—too little and waste won't flow, too much and water outruns solids, causing clogs

The Path to the Sewer

When you flush a toilet or drain a sink, wastewater follows this path:

1. Fixture drain removes water from the sink/toilet
2. A P-trap holds water to block sewer gases
3. Branch drain (1.5"-2") carries waste to the main
4. Main drain (3"-4") connects to sewer/septic

P-Traps: Your Health Guardians

That curved pipe under every sink isn't random—it's a critical safety device. P-traps hold 2-4 inches of water, creating a seal that blocks toxic sewer gases from entering your home. Without this water seal, methane and hydrogen sulfide would flow freely into living spaces.

The Venting System

Here's what confuses most homeowners: drains need air to work. Without vents, draining water creates a vacuum that sucks P-trap water out, breaking the seal against sewer gases. That's why every fixture is connected to a vent pipe that extends through your roof.

How Vents Prevent Problems

Vents serve three critical functions:

• Equalise pressure, allowing smooth drainage
• Prevent siphonage by keeping trap seals intact
• Remove gases safely above living spaces

Signs of Venting Problems:

• Toilets gurgle when the washing machine drains
• Slow drains despite clean pipes
• Sewer smell without a visible cause
• "Glug-glug" sounds from drains
• Water level changes in toilet bowls

I've solved mysterious odour problems that three plumbers missed, simply by checking roof vents for bird nests. In my experience, 30% of "mystery" drain issues are actually vent problems.

How Fixtures Connect Everything?

Every fixture in your home bridges the supply and drainage systems with specific mechanisms:

Toilets: Gravity-Powered Engineering

Toilets work differently from other fixtures. When you push the handle:

1. The flapper lifts, releasing tank water
2. Water rushes into the bowl, creating siphon action
3. Siphon pulls waste through the trap
4. Tank refills via fill valve
5. Flapper reseals for the next flush

Running toilets waste 6,000 gallons annually. The culprit? Usually, a $5 flapper that takes 5 minutes to replace.

Faucets and Valves

Modern faucets use four valve types:

• Compression: Oldest, uses washers
• Ball: Single handle, prone to leaks
• Cartridge: Reliable, easy repair
• Ceramic disk: Most durable, highest cost

Water Heaters

Your water heater is connected to both systems and accounts for 70% of my emergency calls. Tank heaters store 40-80 gallons of water at 120°F, while tankless units heat water on demand.

Critical safety feature: The T&P (temperature and pressure) valve releases if pressure exceeds 150 PSI or temperature hits 210°F. I've seen untested valves fail during over-pressure events, causing catastrophic damage. Test yours annually—pull the lever, water should flow, then stop.

Troubleshooting Guide When Systems Fail

Understanding your system helps diagnose problems quickly:

Supply System Issues:

• Low pressure: Check PRV, look for leaks
• No hot water: Water heater problem
• Banging pipes: Water hammer from quick-closing valves

Drainage Problems:

• Slow drains: Check slope, clear vents
• Gurgling: Venting issue
• Backups: Main line blockage

Emergency Response: The difference between $500 and $5,000 damage is knowing your central shut-off location. Practice finding and operating it—when pipes burst at 2 AM, every second counts.

Real Homeowner Case Study

Jennifer Thompson, Austin, Texas Problem: Mysterious sewage smell in master bathroom. Initial assumption: Clogged drain needing cleaning

"The unused guest shower trap had evaporated, breaking the seal," I discovered. "But the real issue was a partially blocked roof vent creating negative pressure, pulling sewer gas through that dry trap into the master bath."

Solution: Filled trap, cleared roof vent. Cost: $275 (vs. $500+ for unnecessary drain cleaning.) Lesson: Understanding system connections saves money

Essential Maintenance

Based on my service data, these tasks prevent 80% of failures:

Monthly:

• Run water in unused fixtures (maintains trap seals)
• Test toilet flappers for leaks

Annually:

• Test the T&P valve on the water heater
• Check supply line pressure
• Inspect visible pipes for corrosion
• Clear roof vents

Every 5 Years:

• Camera inspection of the main drain
• Replace washing machine hoses
• Service water heater

Disclaimer: Information based on professional experience and industry standards. Local codes and systems vary. Always consult licensed professionals for specific situations.
